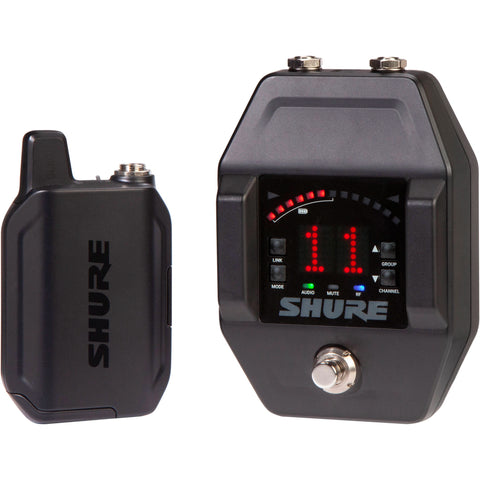

Shure GLXD Dual-Band GLXD16+ Guitar Pedal Digital Wireless System
Product Code: SHR-GLXD16+
$989
$1,099
Shure GLXD Dual-Band GLXD16+ Guitar Pedal Digital Wireless System
The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Bodypack, and the GLXD6+ Guitar Pedal. Go wireless without compromising your tone or complicating your rig.
The new Shure GLXD16+ Dual-Band Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Wireless Bodypack transmitter, and the GLXD6+ Guitar Pedal receiver. Go wireless without compromising your tone or complicating your rig. The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new ¼” guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easily switch between two or more transmitters linked to a single receiver.
Key Features
- For Guitar and Bass Players
- WA305 Guitar Cable
- Lightweight Bodypack Transmitter
- Stompbox-Style Pedal Receiver
- Pedalboard-Ready for Wired Tuner Use
- Auto Scans 2.4 and 5.8 GHz Frequencies
Specifications
| System | |
| Wireless Technology | Digital 2.4 GHz/5.8 GHz |
| Included Transmitters | 1 x Bodypack |
| Diversity | True Digital Diversity |
| Max Operating Range | 30.5 m (Line of Sight) |
| Max Transmitters per Band | 8 |
| Mobile App Compatible | No *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Dynamic Range | 120 dBA |
| Modulation | Proprietary |
| Receiver | |
| Receiver Type | Stompbox |
| Mounting Options | Pedalboard (with Included Hardware) |
| Antenna | 2 x External, Fixed (Top-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/4" TS Female Unbalanced Instrument Input 1 x 1/4" TRS Female Balanced Instrument Output |
| Audio Output Level | 1/4" Output: +8.5 dBV |
| Frequency Response | 20 Hz to 20 kHz (Dependant on Mic) |
| USB/Lightning Connectivity | 1 x USB-C Female (Firmware Update) |
| Impedance | 1/4" Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced) |
| Approximate RF Sensitivity | -88 dBm |
| Spurious | Rejection: >35 dB |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 9 to 15 VDC at 400 mA (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Display & Indicators | 1 x Backlit LED (Channel, Group) 1 x Multi-Segment LED (Transmitter Battery Status) |
| Housing | Aluminium |
| Operating Temperature | 0 to 50°C |
| Dimensions | 95 x 48 x 138 mm |
| Weight | 560 g |
| Transmitter | |
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW (EIRP) |
| Audio I/O | 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable) |
| Pad | None |
| Muting | Off/On Switch |
| Audio Input Level | -8.4 dBV / 7.5 V p-p |
| Gain Range | -20 to +40 dB (1 dB Steps) |
| Sync Method | Proprietary |
| Antenna | 1 x Internal, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 1 x Shure SB904 (Included, Replaceable) |
| Internal Battery Capacity | 2420 mAh |
| Battery Charging Time | .25 to 3 Hours |
| Approx. Battery Life | 12 Hours (Lithium Rechargeable) |
| USB/Lightning I/O | 1 x USB-C (Charging) |
| Display & Indicators | 1 x LED (Battery Status, Sync) |
| Housing | Metal |
| Dimensions | 67 x 115 x 28.5 mm |
| Weight | 153.1 g (without Batteries) |
