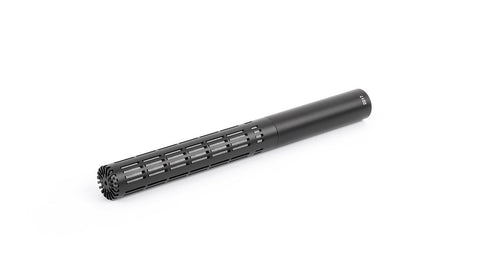

The 2017 Shotgun Microphone is an extremely directional mic that combines crystal clear, authentic sound and stable, consistent performance under harsh conditions. Its acoustical performance sets it apart from any competition. It has efficient off-axis rejection combined with an off-axis frequency response that is much more linear than most similar shotgun mics on the market. These are exactly the capabilities that result in authentic sound.

Tested to survive everyday use

• Not sonically affected by repeated drops onto hard floors
• Survives exposure to direct rain showers, and dries up quickly
• Withstands and recovers from condensation phenomenon

Key features

• Accurate, clean sound
• Extraordinary durability and reinforced construction
• Outstanding off-axis rejection
• Extremely directional pick-up pattern
• Easy to set up and position
• Low self-noise

ACCURATE, NATURAL SOUND

2017 is designed to ensure that the sound from the primary sound source combines effortlessly with natural sound captured off-axis. The sound is clear and lifelike, including the heavily attenuated off-axis input. It exhibits the same non-coloration of the off-axis response, i.e., it sounds like what is coming in on-axis, just damped accordingly with the side and rear entries.

Many other shotgun mics don’t pick up off-axis sound naturally, making, for example, the crowd noise sound more like a waterfall or even completely unrecognizable.

EXTRAORDINARY DURABILITY THE 2017 IS CONSTRUCTED TO WITHSTAND ROUGH HANDLING AS WELL AS DIFFICULT SITUATIONS, SUCH AS COLD CLIMATES AND HUMIDITY.

DPA have designed the encapsulating structure without moving mechanical parts and have found just the right thickness of material and ideal uniform pattern of slits on the grid. These things combined make the microphone extremely resistant to mechanical impact. In addition, the materials used in the capsule design and electronics ensure the mic is resistant to moisture, temperature and condensation issues.

The 2017 has a thick, robust body construction of brass that is exceptionally durable and known for its corrosion resistance and tolerance against metal fatigue. In addition, the surfaces of the mic are treated with a protective black chrome finish, which ensures more graceful ageing.

OUTSTANDING OFF-AXIS REJECTION

2017, like all DPA’s directional mics, has outstanding performance off-axis. Due to the expertly designed interference tube technology, all off-axis input is highly attenuated.

This means that the 2017 offers comparable directionality as comparable mics on the market, but due to the well-crafted design, the off-axis pickup is much more balanced as well as uniform. This gives the user a well-balanced compromise between natural off-axis sound and maximal off-axis rejection.

EXTREMELY DIRECTIONAL PICK-UP PATTERN

The 2017 is an extremely directional shotgun microphone. It shows impressive attenuation at 90° (around -10 dB) and maximal rejection around 125° (more than -20 dB). Its polar patter provides a more even pickup of “on-scene” (0°) sound sources than many widely-used shotgun microphones and a larger rejection of out-of-scene noises, thereby achieving a better overall performance than many competing mics on the market.

EASY TO SET UP, POSITION AND USE

2017 is shorter, lighter and easier to use than competitive mics. Its smaller dimensions allow it to fit in smaller wind protection units and, since there are no buttons to push on it, you can place it in its protection unit and forget about it.
